This tie tamper is 19.1 kg (dry weight), a full 40% lighter than the original RT-35ZX.
The bit handles all ballast tamping needs.
This new tamping equipment was developed using analysis of resonance frequency, resulting in a significant reduction in vibrations to the operator (3-axis composite value: 5.8m/s2).
The axle lever can only returned manually, meaning the handle can be securely gripped with both hands.
| Model | RT-35ZX Type2 |
|---|---|
| Engine | HONDA |
| Engine output | 1.0 kw/7000 rpm |
| Emissions | 35.8 cm3 |
| Fuel tank capacity | 0.63 ℓ |
| Fuel consumption | 1 hour (full tank) |

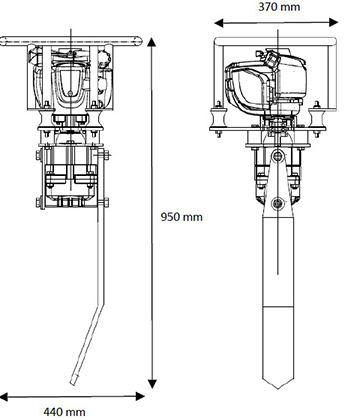

| Measurements | 440 x 370 x 950 mm |
| 3-axis composite value | 5.8 m/s2 |
| Dry weight | 19.1 kg |
